Standing seam roofing panels and Roll forming machines for its production

Roll forming solutions for manufacturing standing seam roofing panels.

In Canada’s dynamic construction and roofing industry, precision, durability, and energy efficiency are non-negotiable. That’s why the standing seam roofing system continues to gain traction among Canadian contractors and property developers. Central to this roofing innovation is the standing seam machine—a powerful piece of equipment designed to fabricate long-lasting, weather-resistant metal roofing panels.

What is a Roll Forming Machine for roofing panels?

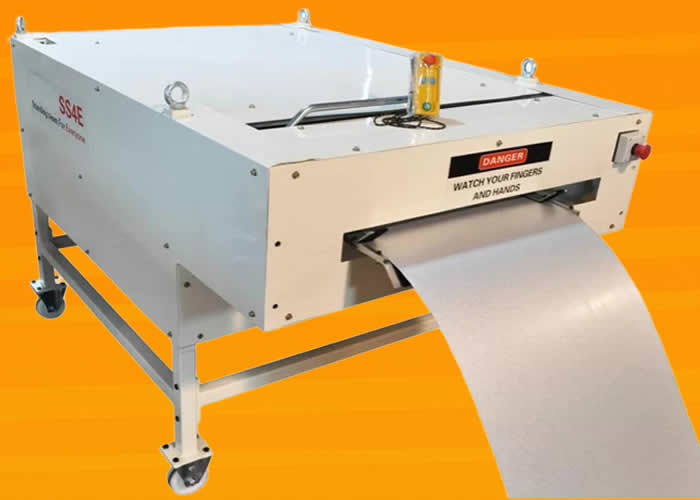

A standing seam machine is a roll-forming tool that shapes metal coils—typically steel, aluminum, or copper—into interlocking metal panels with raised seams. These seams help protect buildings from harsh Canadian weather by creating a watertight barrier.

How It Works

1. Material Loading:

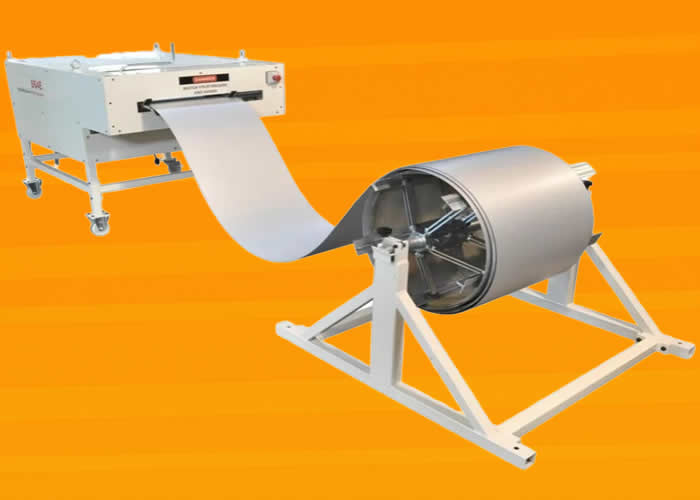

   Pre-painted or coated metal coils are loaded onto the decoiling machine.

2. Roll Forming:
   The machine's rollers gradually bend and shape the flat metal into a standing seam profile, forming vertical ribs and interlocking edges.

3. Cutting:
   Advanced machines automatically cut panels to length, ensuring precision.

4. Seam Sealing:
   Once installed, the panels’ seams can be crimped or sealed to further enhance waterproofing—critical in regions with heavy snow or rainfall.

Why Use a Standing Seam Roofing System in Canada?

• Weather Resistance:
  With snow, ice, and temperature swings, Canadians benefit from the leak-proof and wind-resistant nature of standing seam roofs.

• Energy Efficiency:
  Reflective metal panels help reduce cooling loads during summer.

• Aesthetics:
  Its sleek, modern look suits both residential cottages and commercial properties across Canada.

• Longevity:
  These systems can last 40–70 years with minimal maintenance.

Standing Seam Profile Types

Different standing seam profiles offer varying aesthetics and functionality:

• Double-Lock Mechanical Seam 2”:
  Offers enhanced weather resistance—suitable for extreme climates. Ideal for roofs with large areas.

• Double-Lock Mechanical Seam 1.5”:
  Guaranteed weather tightness for the regions with frequent precipitations.

• Slotted-Flange Snap-Lock 1.5”:
  Easy to install and ideal for residential buildings.

• Slotted-Flange Snap-Lock 1”:
  The choice for DIY and the areas with mostly sunny weather with seldom rains.

• Snap-Lock With Clip 1.75”:
  Suitable for both commercial and residential buildings in regions where weather tightness makes sense.

• Snap-Lock With Clip 1.5”:
  Used mostly for residential buildings.

When selecting a profile, Canadian contractors should consider snow load, wind uplift resistance, and architectural goals.

Buying a New or Used Standing Seam Machine in Canada

Pros of Buying New

• Comes with a warranty.

• Includes modern automation and safety features.

• Offers longer lifespan and technical support.

• Can be customized to your preferred panel profile.

Pros of Buying Used

• Lower upfront cost—ideal for small contractors or rural operations.

• Often readily available in local markets.

• Some used machines have a proven track record of performance.

However, used machines might lack a warranty, contain outdated technology, or need repairs. Always inspect a used standing seam machine thoroughly before purchasing.

What’s the Most Affordable Standing Seam Option?

For Canadians looking for an affordable standing seam system:

• Choose galvanized steel panels over aluminum or copper.

• Opt for snap-lock profiles—easier and cheaper to install.

• Use wider panels (e.g., 24") to reduce installation time and material needs.

• Keep roof design simple—avoid complex hips, valleys, or skylights.

While corrugated metal roofing is cheaper upfront, standing seam systems offer better long-term value due to durability and energy efficiency.

Standing Seam vs. Corrugated Roofing

Where to Find Roll Forming Standing Seam Machines in Canada

Year after year metal roofing in Canada is gaining momentum. This process won’t be stopped as consumers realized all the pros of usage metal as material for roofing systems. Started within big cities, the popularity of metal roofing panels spread out throughout whole Canada.

Stan Roll Forming Machines as a supplier of the modern roll forming equipment always happy to help in solving issues in equipping the contractors and fabricators.

We are be able not only give you a snap response on all of your questions but to propose some alternative options that will be useful for your consideration.

Our specialists have a more than 20 years length experiences in this field but also have long-lasting strong connections with manufacturers in the USA, China, Ukraine.

Please call or text us if you have any questions in regard of the following type of equipments:

• Roll forming machine for roofing panels,

• Roll forming machine for siding panels,

• Embossing machine for metal stripes,

• Perforation machine for metal sheets and coils,

• Spinning machine manual used and CNC upgraded,

• Lock formers for HVAC,

• Duct equipment,

• Downspout and gutter machines, elbow maker for downspout systems,

• And many, many other kind of equipment for metalwork.

📞 +1 584 888 5558
📧 Info@stangroup.ca

Final Thoughts

The standing seam machine is more than a tool—it’s an investment in roofing excellence. With the right profile, equipment, and materials, Canadian contractors can deliver high-performance roofs that withstand the harshest environments. Whether you're a large commercial roofer or a small independent contractor, understanding the capabilities of this equipment will set you up for success.
