HVAC Duct Forming Machines: Spiral vs. Square Duct Solutions

Thriving construction and HVAC sectors, contractors and manufacturers increasingly rely on high-performance HVAC duct forming machines for both spiral and square duct production. These machines streamline metal forming, reduce labor, and ensure compliance with building and energy codes across provinces from Ontario to British Columbia.

This guide explores the core features, technical specifications, and applications of spiral duct machines and square duct-forming equipment, helping you choose the right machinery for your shop or project.

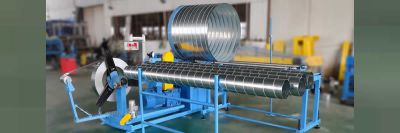

1. Spiral Duct Forming Machines

What are they used for?
Spiral duct machines, also known as spiral tubeformers, are used to fabricate round spiral ducts from metal coils. These ducts are widely used in commercial HVAC systems, clean rooms, manufacturing plants, and underground parking facilities.

Key Features and Benefits:

• Seam-welded or lock-seamed ducts for excellent air-tightness

• Fast, continuous production of spiral tubes (from 3.5″ to 60″ diameter)

• Compatible with galvanized steel, stainless steel, and aluminum (0.4–1.2 mm)

• CNC/PLC control systems with adjustable diameter settings

• Automatic coil feeding, cutting, and stacking options

Typical Specifications:

• Output speed: up to 30 m/min

• Motor: 7 HP forming, 5 HP cutting

• Pneumatics: 50–70 psi

• Machine footprint: ~2.0 × 2.0 × 2.85 m

Where they are used:

• Industrial HVAC systems

• Commercial buildings

• Dust and fume extraction systems

• Low- and medium-pressure air movement applications

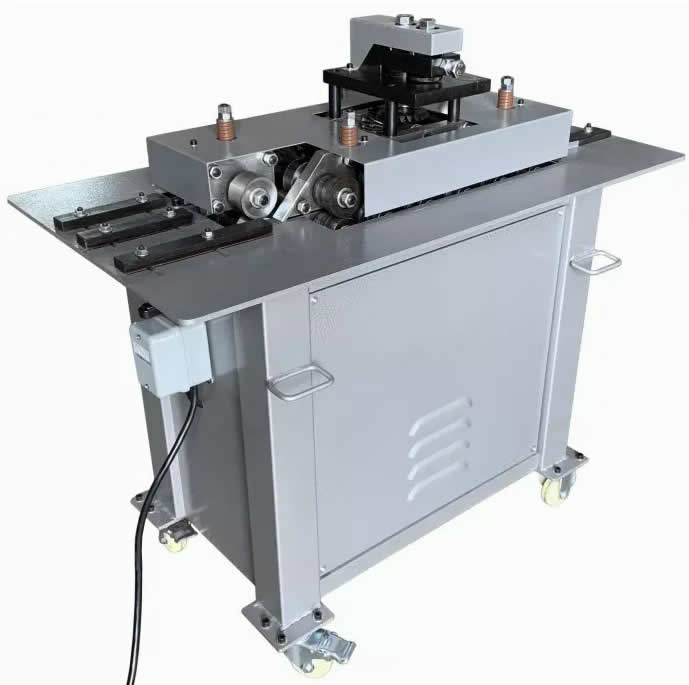

2. Square and Rectangular Duct Forming Machines

What do they do?
These machines form square and rectangular duct sections, seams, and edges. They enable precision fabrication for duct flanges (TDC/TDF), Pittsburgh locks, S-cleats, and beaded duct walls.

Main Advantages:

• Accurate and repeatable production of flanged and seamed ducts

• Multiple operations (beading, flanging, lock forming) in modular format

• Heavy-duty steel construction for industrial workloads

• Easy operation with minimal operator training

Featured Machine Types:

• Pittsburgh Lock Forming Machines: Fold Pittsburgh seams in 22–26 ga steel

• Lock Seam Closers / Seamers: Secure lock seams quickly and cleanly

• S-Cleat and C-Cleat Machines: Fabricate four different lock types in one unit

• Duct Beading Machines: Strengthen duct panels up to 60″ wide

• TDC/TDF Flange Formers: Produce industry-standard flanges for square ducts

Applications:

• Office and institutional buildings

• Mechanical rooms and commercial basements

• Retrofit and modular HVAC installations

• Tight-space or angular air routing

3. Spiral vs. Square Duct Machines: Key Differences

4. Technical Specifications to Look For

For Spiral Duct Formers:

• Adjustable forming head (3.5″ to 60″ diameter)

• Quick-change forming molds

• Precision cutting: saw or disc blades

• Stacking or collection tables for finished tubes

• Coil width range: 137 mm to 140 mm (standard)

For Square Duct Systems:

• Motor power: 2–5 HP depending on machine

• Shaft size: 1.2–2.0 inches

• Material capacity: 18 to 26 gauge

• Max sheet width: typically up to 60 inches

• Seam styles: Pittsburgh, Snap-lock, Drive-cleat, S-cleat, TDF

5. Choosing the Right Duct Forming Machine in Canada

When selecting a duct forming machine, consider:

1. Your duct shape preference (spiral vs. rectangular)

2. Expected production volume

3. Compatible materials (thickness, type)

4. Available floor space in your shop

5. Automation level and speed requirements

6. Local service and technical support availability

Whether you're a custom sheet metal fabricator in Ontario or a large commercial HVAC installer in Alberta, having the right machinery ensures speed, consistency, and profitability.

Spiral and square duct forming machines play a vital role in HVAC system fabrication. Whether you're producing large-diameter spiral ventilation pipes or compact rectangular ducts with airtight flanges, these machines improve your workflow, reduce errors, and help your business grow.

Investing in quality HVAC sheet metal equipment—built for the Canadian market—means long-term reliability, easier code compliance, and better energy efficiency in the systems you install.
